<<BACK
Belong to Category:SFP/GBIC/XFP/X2/XENPAK Transceivers
Item No: KY-10G-0007

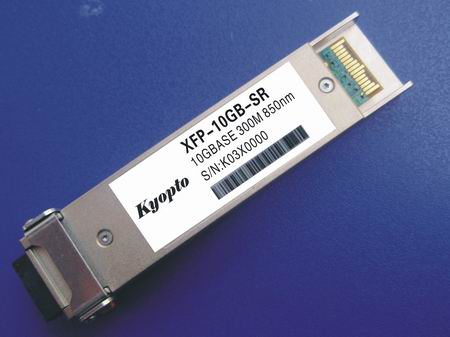

Product Name: XFP-10GB-SR
Weight(Kg): 0
Compatibility: The products are compatible mainstream switch system
Base Data : 10GBASE-SR XFP transceiver module for MMF, 850-nm wavelength, SC connector
Work Circumstance: operating temperature range:0℃ to +70℃




Packing Explain:

The packing explanation:
A)supply the label
1.neutral label
2.label with “KYOPTO” LOGO
3.Supply the label customer used specially according to the requirement of customer(the cost will be charged by you or discuss concretely)
B)the packing box
1。The PVC packing box
2。White box packing
3。Supply the packing box which customer use specially according to the requirements of customer(the cost will be charged by you or discuss concretely)


Spec Explain:


XFP-10Gb-SR
850nm 10Gbit/s XFP Transceiver

Features
Fully compliant to XFP MSA Rev.4.5
Support of IEEE 802.3ae 10GBASE-SR at 10.3125 Gbps
Compliance to Fibre Channel 1200-M5-SN-l, 1200-M5E-SN-l, 1200-M6-SN-l at 10.51875Gbit/s
Transmission distance up to 82m(50μm MMF) or 300m(high bandwidth MMF;2000MHz*Km)
Low power consumption <1.5W(typ.)
Single 3.3V power supply, or optional 1.8/3.3V
Wide operating temperature range:0℃ to +70℃
Laser Class 1M compliant
Vertical Cavity Surface Emitting Laser at 850nm(VCSEL)
LC duplex connector
XFI loopback supported
No reference clock required
Lead free and RoHS Compliant
Excelllent EMI performance
High reliability
